PACKAGE CONTENTS

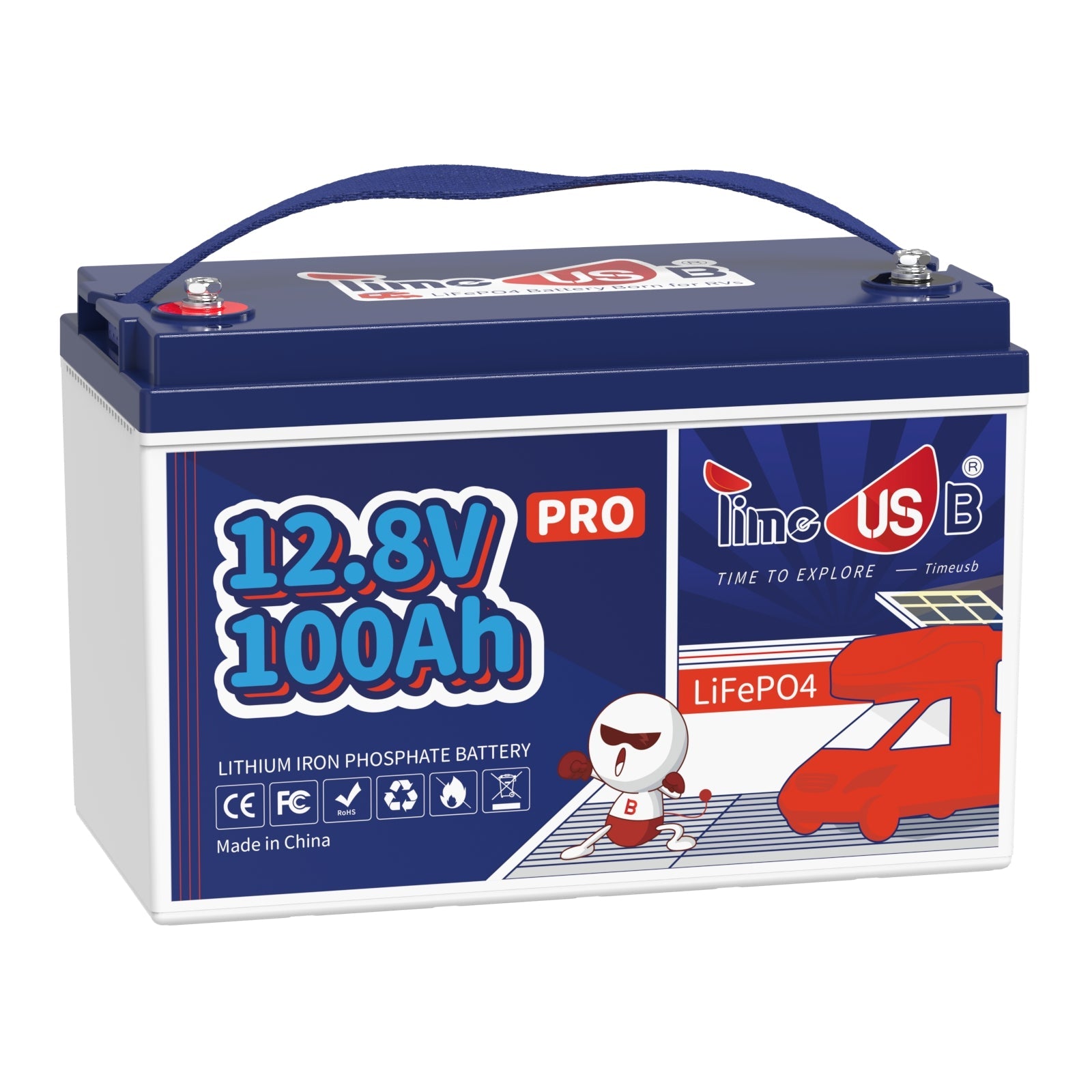

1 x 12V 100Ah pro LiFePO4 battery
2 x M8 bolts
1 x Warranty Card
1 x Product Manual
Attention: A charger is not included.
Specific Info
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years

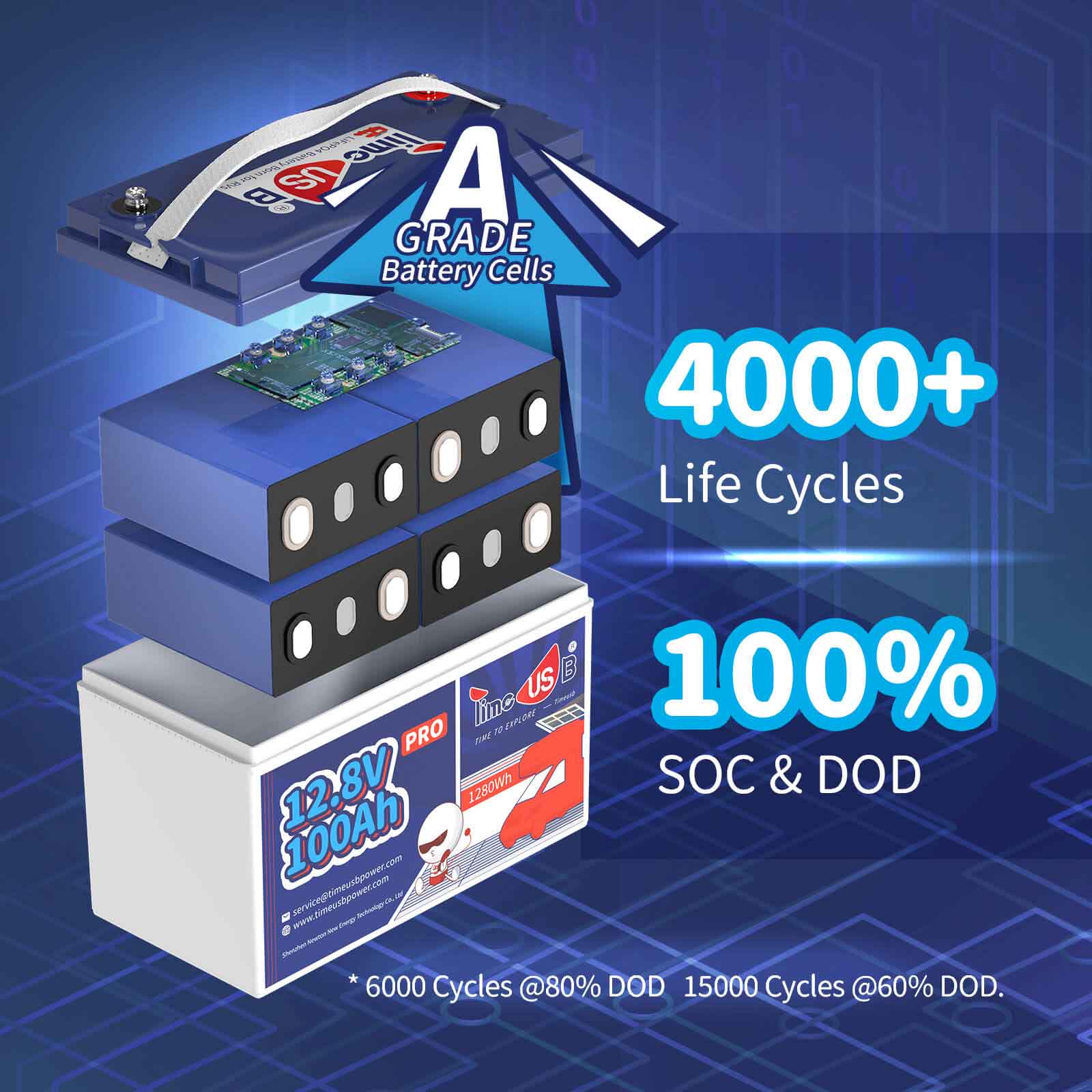

Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P (12V 400Ah) / 4S (48V 100Ah) / 4P4S (48V 400Ah)
Internal Resistance：
≤40mΩ
Certifications：
CE/FCC/UL-1973/ROHS
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Max. Discharge Current 5 Seconds：
280A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
32℉ to 122℉ (0℃ to 50℃)
Discharge Temperature：
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：
14℉ to 122℉ (-10℃ to 50℃)
OTHERS
Terminals：
M8 bolts
Weight Approx.：
23.15lbs
Size：
L13 x W6.77 x H8.43 in.
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: Can I use Timeusb LiFePO4 Lithium batteries as starting batteries?
A:
Timeusb LiFePO4 batteries are not meant to be used as starting batteries. They are specifically designed for energy storage and lack the Cold Cranking Amps (CCA) required for starting applications.
For more information, please refer to the article "Deep Cycle VS Starting Battery."
Q: Can I use the Timeusb 12V 100Ah lithium battery for my trolling motor?
A:
Yes, the Timeusb 12V 100Ah Pro lithium-ion battery is compatible with trolling motors with a thrust between 30-70 lbs. If you have any additional questions, we can offer recommendations based on your specific needs.
Q: What is a group 31 battery? Is Timeusb 12V 100Ah Pro deep cycle battery suitable to replace Group 31 battery?
A:
Group 31 batteries are designated by the BCI Group label, have a specific set of dimensions at L13 x W6.8 x H9.44 inches (L330 x W173 x H240 mm) and are suitable for semi-trucks and other deep cycle applications like off-the-grid systems, marine use, etc.
Timeusb 12V 100Ah Pro LiFePO4 Lithium Deep Cycle Battery measures L13 x W6.77 x H8.43 inches. It is a perfect replacement for group 31 batteries.
Q: What are the ways to charge Timeusb LiFePO4 Lithium batteries? Can I charge with solar panels?
A:
There are 3 ways to charge Timeusb LiFePO4 lithium batteries:
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Using Generator or Alternator
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity.
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. Using LiFePO4 Smart Chargers (Recommended)
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity.
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Of course you can charge with solar panels.

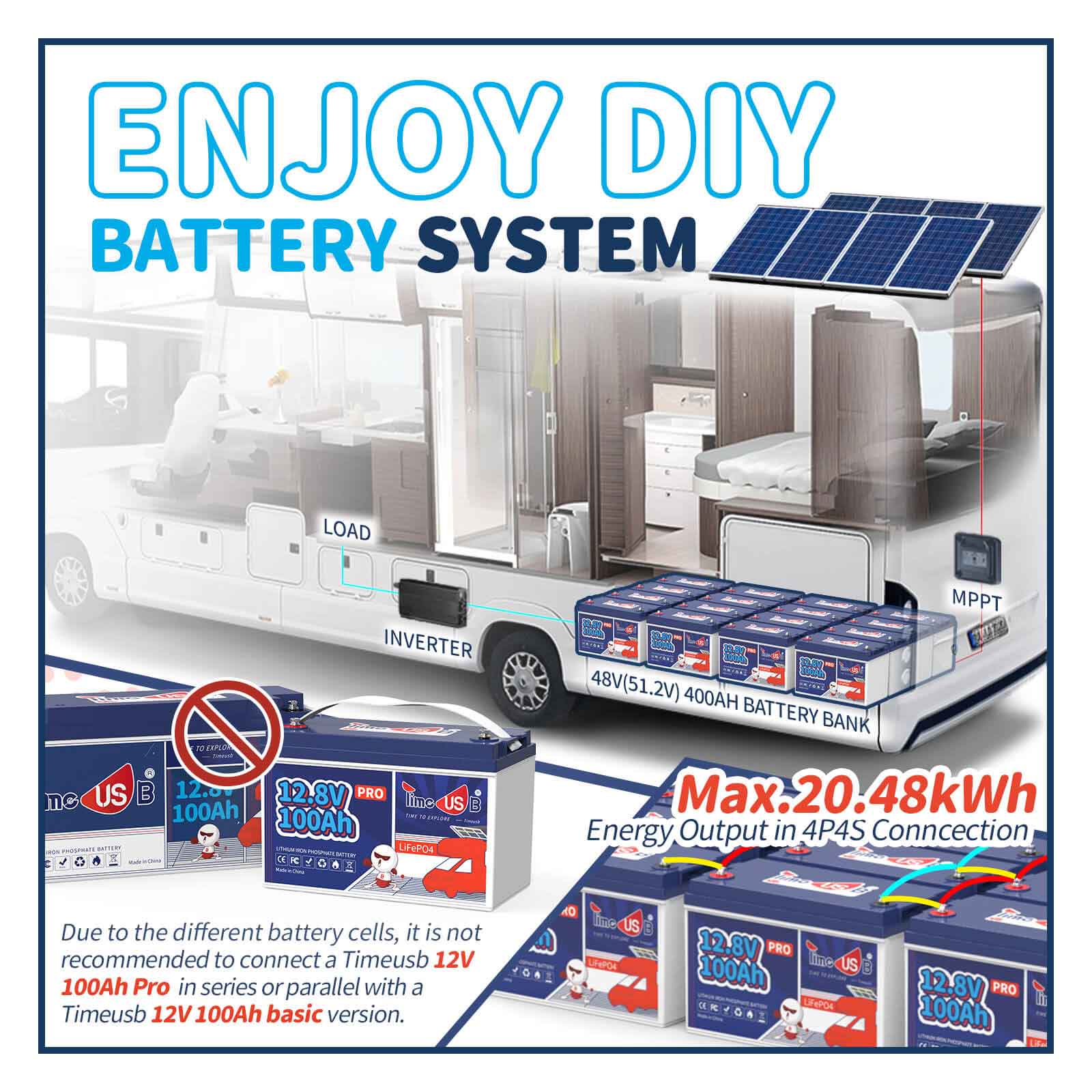

Q: What is the maximum number of Timeusb 12V 100Ah lithium batteries that can be connected?
A:
The Timeusb 12V battery supports a variety of connections, including series, parallel, and series-parallel configurations. You can connect up to 4 batteries in series (4S), 4 batteries in parallel (4P), or 16 batteries in a series-parallel configuration (4P4S).
