【Superb BMS Protections】One Timeusb 300Ah LiFePO4 battery built-in 200A BMS, which supports 200A Max. continuous charge/discharge current, 2560W Max. load power and 3840Wh Max. usable energy. The superb BMS board provides multiple protections for the battery from overcharging, over-discharging, over-current, high-temperature, short circuit, helps balance the cells inside and prolong the cycle times.

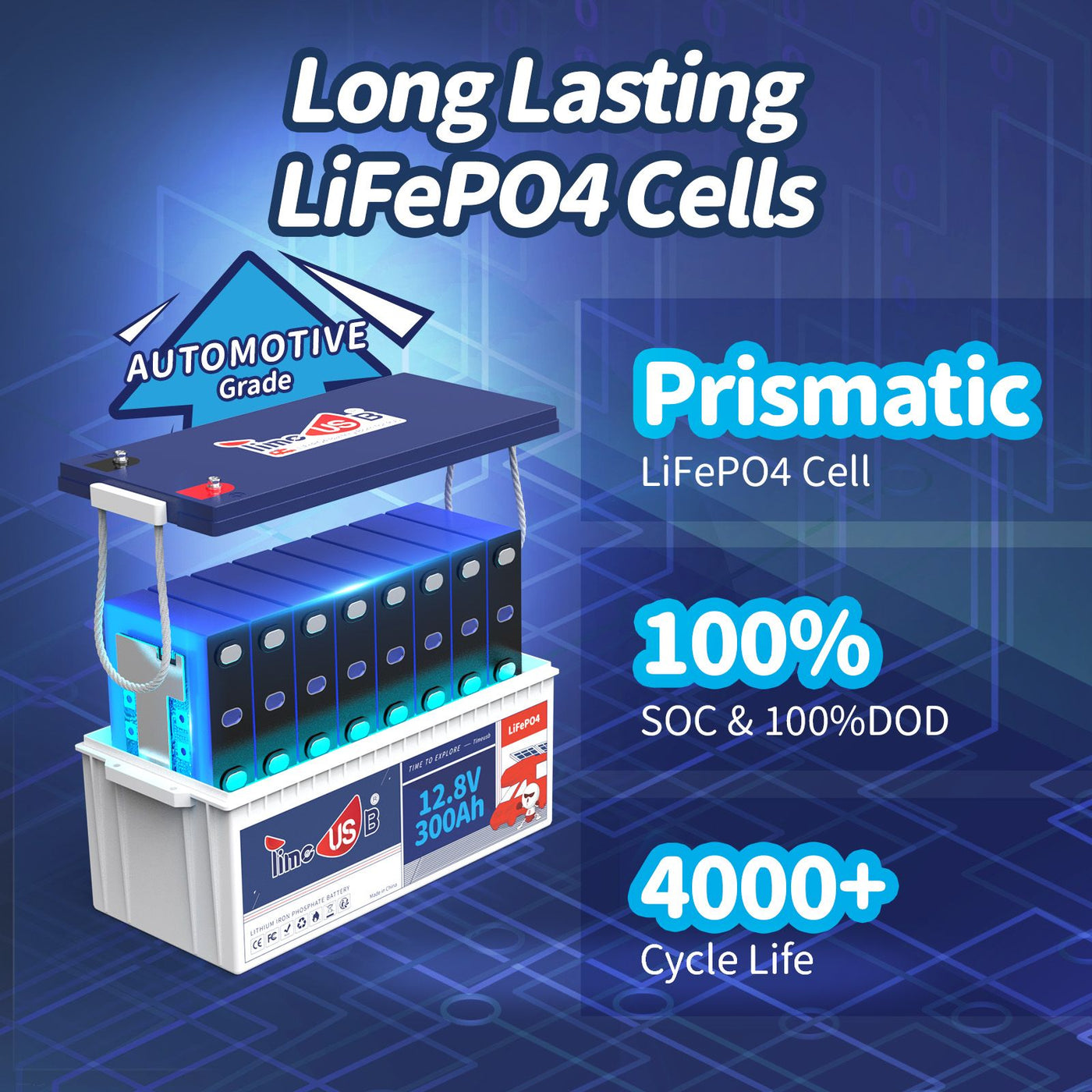

【Automotive Grade Cells With 4000+ Cycles】Timeusb 300Ah LiFePO4 battery is built Automotive Grade LiFePO4 prismatic cells with low self discharge rate. The advanced technology ensures 100% SOC and 100% DOD on the cells, up to 4000+ cycles and a 10-year lifespan. Timeusb LiFePO4 battery’s reliability and longevity make it a worthwhile investment in the long run.

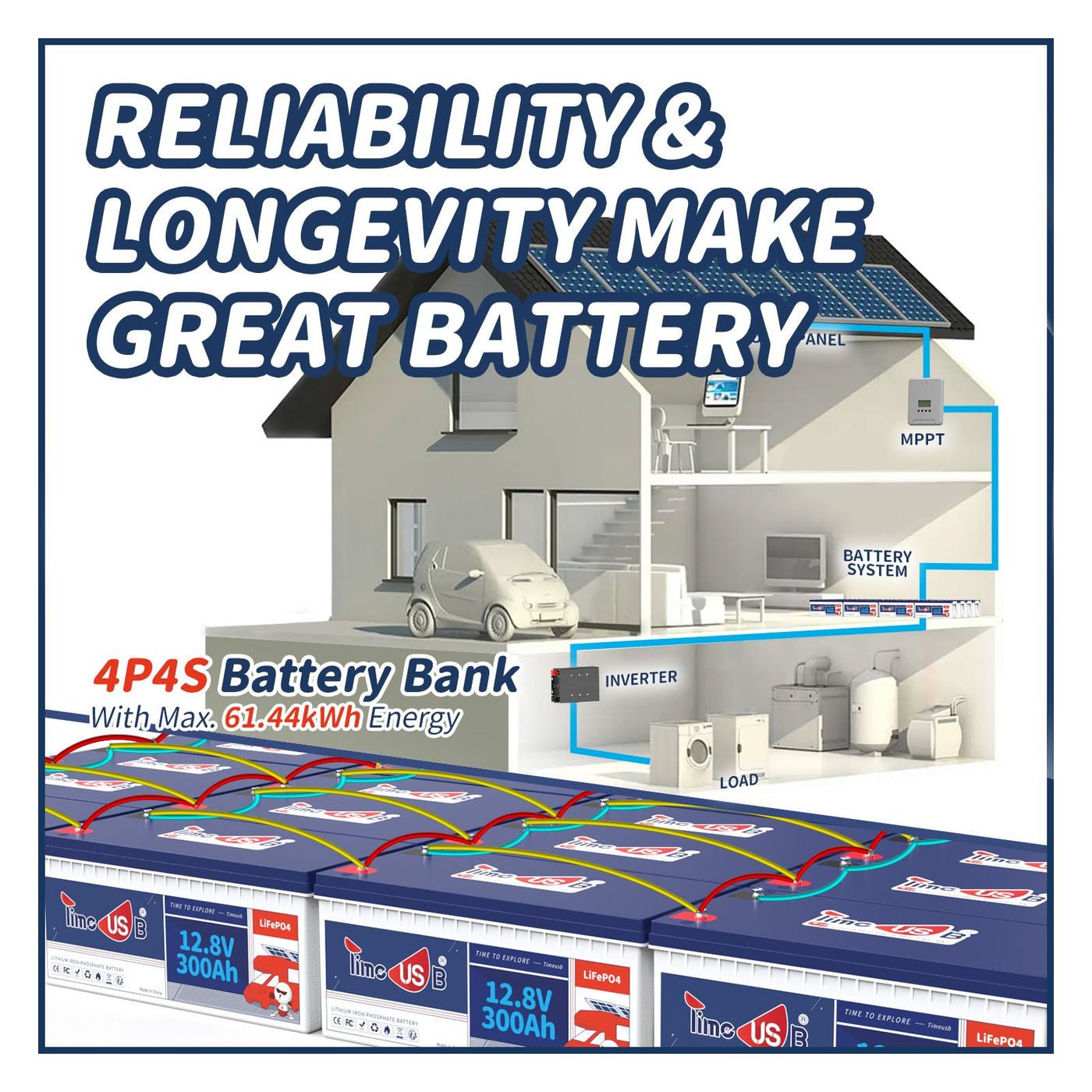

【Max. 61.44kWh Usable Energy】Timeusb 12.8V 300Ah Lithium batteries support being connected up to 16 batteries in 4P4S(P refers to Parallel and S refers to Series) to build up a 51.2V 1200Ah battery bank, so the Max. usable energy is 61.44kWh, and Max. load power is 40.96kW. With a compact design and exquisite shell, it’s easy for you to handle in various applications, such as solar home systems, off-grid systems, RV, etc., bringing you more experience in life.
【3 Times Capacity & More Convenience】With 3840Wh energy output, one Timeusb 12.8V 300Ah LiFePO4 equals 3*12.8V 100Ah in parallel. It occupies less space and brings more convenience because there’s less trouble for wiring multiple batteries in parallel and balancing the voltage difference. Besides, you can get more stable performance from the battery so a better user experience is obtained.
【Efficient Delivery & 24Hrs Service】Timeusb provides customers with a responsive and professional customer service team that provides targeted battery solutions within 24 hours of question receipt. Given Timeusb a highly effective after-sales and delivery team, our customers in the United States can receive Timeusb products within 2-5 working days.
Destinations
We only ship orders to Continental US. All our products are ship from US warehouse.
Shipping fee: FREE shipping on all orders
Shipping method: UPS Ground
Processing time: 1-2 business days
Shipping time: 1-7 business days
Timeusb 12V 140Ah LiFePO4 Lithium Battery with Low Temp Cut Off,Built-in 100A BMS,Max.1792Wh Energy,Up to 15000 Cycles & 10-Year Lifetime Perfect for RV Home Backup System Off-Grid Trolling Motor
Temperature Range
Charge: 0°C to 50°C / 32°F to 122°F
Discharge: -20°C to 60°C / -4°F to 140°F
Storage: -10°C to 50°C / 14°F to 122°F
InstallationOrientation
Any orientation except for installing the battery by its long side (front) and terminal post bolts upside down.
Battery Connection Suggestions
1. Same voltage,capacity and BMS
2. From the same brand.
3. Purchase within 3 months
Kind Reminder
Pleease DO NOT use it as a starting battery (Including Golf cart)
Brand | Timeusb |
---|---|
Vehicle Service Type | Van, Scooter, Truck, Trailer, Lawn Mower, Boat |
Size | 12V300Ah |
Voltage | 12 Volts |
Battery Cell Composition | Lithium Ion |
Item Weight | 57.7 pounds |
Item Weight | 1 12V batteries required. (included) |
Product Dimensions | 20.55 x 9.45 x 0.01 inches |
Country of Origin | China |
Item model number | 12v300ah |
Terminal | M8 |
BMS | 200A |
Energy | 3840Wh |
Max.Power | 2560W |
Max.Current | 100A |
Resistance | Marine Terminal |
Dear Customer,
One of Timeusb 12V 95Ah LiFePO4 battery built-in 50A BMS, which could support 50A max. continuous charge/discharge current, 640W max. continuous load power, and has max.1216Wh energy.
You could use Timeusb 50Ah lifepo4 lithium battery for fish finder whose max. Power is less than 640W.
By Timeusb Customer Service Team.
Dear Customer,
Their most difference is BMS.
One of Timeusb 12V 95Ah LiFePO4 battery built-in 50A BMS, which could support 50A max. continuous charge/discharge current, 640W max. continuous load power, and has max.1216Wh energy.
One of Timeusb 12V 100Ah LiFePO4 battery built-in 100A BMS, which could support 100A max. continuous charge/discharge current, 1280W max. continuous load power, and has max.1280Wh energy.
So if the total power of your loads is larger than around 600W, we suggest that you choose 12V 100Ah battery.
By Timeusb Customer Service Team.
Dear Customer,
One of Timeusb 12V 95Ah LiFePO4 battery born for RV built-in 50A BMS, which could support 50A max. continuous charge/discharge current, 640W max. continuous load power, and has max.
1216Wh energy.
It is a perfect battery use for RV, and to maintain the good performance of the battery, we suggest that the total power of fans and small lights in your RV should be less than 640W.
By Timeusb Customer Service Team
Dear Customer,
Timeusb 12V 95Ah lithium iron phosphate(LiFePO4) battery can be wired in series to make 24V battery system. Connecting 2*12V 95Ah batteries in series, you can get a 24V 95Ah battery system, which could support 50A max. continuous charge/discharge current, 1280W max. continuous load power, and has max.2432Wh energy.
By Timeusb Customer Service Team
Dear Customer,
One of Timeusb 12V 95Ah LiFePO4 battery built-in 50A BMS, which could support 50A max. continuous charge/discharge current, 640W max. continuous load power, and has max.1216Wh energy.
Usually, you can use Timeusb 95Ah battery to replace your 2*20ah batteries, but pls make sure that the max. Power of your car audio is less than 640W and the battery system should be 12V.
By Timeusb Customer Service Team.
Dear Customer.
The Timeusb 95Ah LiFePO4 lithium battery is able to reach around 3000 times cycle life without problem. We recommend to use the battery according to operation guide and manual in order to make the full use of the potential cycle time.
By Timeusb Customer Service Team.
Dear Customer,
Timeusb 12V 95Ah LiFePO4 batteries built with qualified storage energy cells with UL certifications to ensure the high quality.
By Timeusb Customer Service Team
Dear Customer. The Timeusb 95Ah LiFePO4 lithium battery uses M8 standard screws as terminal bolts. The Timeusb battery includes 2 sets of M8 bolts in it’s package box. You could get them from your local stores if you are looking forward to buy some as spares. By Timeusb Customer Service Team
One Timeusb 12V 95Ah battery supports 50A max. continuous charge/discharge current.
Usually, a Timeusb 95Ah battery could be used on the load which is no more than 50A current. In our experience, the batteries are used well if doing so.
However, the Timeusb 95Ah battery is the storage energy battery instead of the start-up battery. We lack the data of using it/them on trolling motors. So we don’t get the limitations or specific concerns documented. Based on some feedback from our customers, we are concerned that every trolling motor has a hide high start-up current that may cause damage to the battery.
And all the suggestions are based on the above background. It is not like a thing must happen, it is like an unsure thing that we are worried about - since we want our customers to have the best user experience.
Please feel free to contact us with any further questions.
By Timeusb Customer Service Team.
Dear Customer.
The Timeusb 95Ah LiFePO4 battery has a built-in 50A BMS, meaning the maximum continuous current 50Amp. Usually we suggest that run the battery with 0.2C rate.
By Timeusb Customer Service Team.
Dear Customer,
If you connect two Timeusb 12V(12.8V) 95Ah lithium batteries in parallel, you will get a 12V 190Ah battery system, which could support 100A max. continuous charge/discharge current, 1280W max. continuous load power, and has max. 2432Wh energy.
To maintain the good performance of the battery, usually we suggest that you charge the battery system in 0.2C charging current, that is 20A.
By Timeusb Customer Service Team.
Dear Customer,
The dimension of Timeusb 12V 95Ah LiFePO4 battery and 12V 100Ah LiFePO4 battery are same, it is L19 x W6.7 x H9.5 inches.
By Timeusb Customer Service Team
Dear Customer,
Timeusb battery currently does not have built-in Bluetooth BMS.
